ASA AZ1500 Ritchey-Chrétien Alt-Az telescope f6

ASA AZ1500 Ritchey-Chrétien Alt-Az telescope f6

An evolution milestone of high-end telescope systems with 1.5m aperture.

This complete solution represents a fully integrated alt-az observatory system. The AZ1500 1.5m is equipped with quartz optics from ASA. This guarantees diffraction-limited performance and best micro-roughness values even under the most perfect Earth-based astronomical seeing conditions. With fast focal ratio, the design results in less obstruction, higher contrast, and a more compact system. The size and cost of your dome infrastructure is reduced.
1500mm f6/f2 Ritchey-Chrétien Nasmyth Focus is equipped with absolute encoder secondary mirror focusing unit and configurable with up to 4 Nasmyth ports.



inquire1





Main Facts

Optical design
Ritchey-Chrétien RC

Focus position
Nasmyth 2 as standard, 4 as option

Clear Aperture / Focal Ratio Primary Mirror
1500mm (59,1 inch) / f2

Mirror material
Zerodur

Microroughness
1nm RMS / <0.7nm Ra

Back Focus from flange
513mm

Software
ASA API (application programming interface) available autumn 2023 ASA Software(Autoslew, Sequence-windows based, ACC) with ASCOM-Alpaca

Tracking Accuracy (20° to 85°)
<0,25” RMS within 5 minutes tracking time over 5 min 0,05” RMS/min
Linear central obstruction
43%

Focal ratio system
f6

Image field
200mm (1.27 degrees)

Surface quality
>94 strehl

Coating
Al+SiO2 >91%

Weight tube
5000kg (11023lbs)


Pointing Accuracy (20° to 85°)
<8” RMS with pointing model

System Natural Frequency
10 Hz or greater

 datasheet logo2



RC & CDK Comparison





==> See Full RC & CDK Comparison

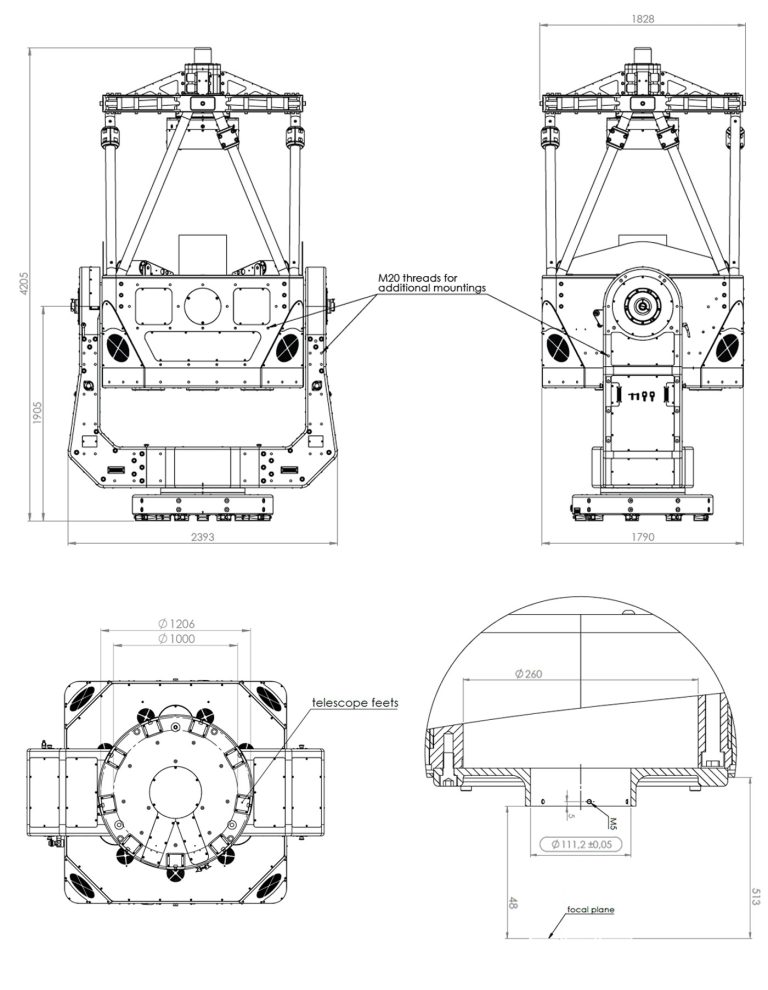

ASA AZ1500 Ritchey-Chrétien Alt-Az telescope f6

Technical Details

Electronic
Our closed loop direct drive systems, sensor technology and observatory safety modules play a major role in achieving optimum results. All moving accessory components are equipped with high-resolution encoders and closed-loop feedback systems. We provide event timer modules, and customer updatable firmware.
learnmore1

Optic

Only the best for your telescope!

We believe that the most important part in producing optics is the testing. So ASA decided that we invest in the best test equipment available, remove any measuring error as good as possible and use real values in our specifications.
learnmore1

Technologie
Our mounts are manufactured with the lastest CNC technology.
learnmore1

Software
Platform independent control software.
learnmore1



ASA/APM  Services

 Optional Tests for FAT/SAT  Installation package remote/on-site  Setup and Alignement remote/on-site
 Engineering Image Train Package  Alternative mirror coating Projektconsulting/-management by ASA/APM


ASA Accessories

  Remote package pro  Weather station sensor package  All Sky Cam 0201171A
