ASA WF1000 f2.5 Wide Field telescope system



ASA WF1000 f2.5 Wide Field telescope system

Ideal platform for widefield imaging!

The WF1000 f2.5 telescope is the ideal platform for wide field imaging and all-sky surveys. The WF1000 f2.5 features a 5-lens corrector and motorized focusing with absolute encoders.
The main mirror can be collimated fully electronic to allow an easy and fast remote collimation.
The WF1000 ensures precise focus and high-resolution data acquisition of the night sky – in the shortest possible time!

UWF1000 f2.5 Optical Layout

UWF1000 f2.5 Optical Layout

The UWF1000 uses a prime focus configuration. The main mirror is a high order asphere and in the prime focus we use a 5 Lens corrector to correct any field aberrations in a wavelength range from 400nm to 700nm. This prime focus telescope achieves the large field through a larger possible field diameter, enabling the usage of the largest available CCD/CMOS cameras with up to 95x95mm2 sensor size.
The larger focal length will be an advantage if it comes to resolution and pixel scale, or if you plan to use CCD cameras with larger pixels

==> See full UWF1000 F2.5 Report!



.inquire1



  Main Facts

Optical design
Wide Field, prime corrector

Focal length
2500mm

Clear Aperture / Focal Ratio Primary Mirror
1000mm (39.3 inch) / f2.5

Mirror material
Fused silica

Surface quality
>80 strehl

Coating
Al+SiO2 >96%

Weight tube
1950kg (4300lbs) (no camera or filter)

Latitude Range
20 to 80 degrees views

Max. slew speeds
Up to 50 degrees per second

Tracking Accuracy (20° to 85°)
<0,25” RMS within 5 minutes tracking time over 5 min 0,05” RMS/min
Linear central obstruction
42%

Focal ratio system
f2.5

Image field
130mm (2.98 degrees)

Image Quality FWHM
<8um RMS

Microroughness
1.3nm RMS / <0.7nm Ra

Back Focus from flange
100.88mm

Motor
ASA Direct Drive

Software
ASA API (application programming interface) available autumn 2023 ASA Software(Autoslew, Sequence-windows based, ACC) with ASCOM-Alpaca

Pointing Accuracy (20° to 85°)
<8” RMS with pointing model and ASA telescope

System Natural Frequency
10 Hz or greater


datasheet logo2

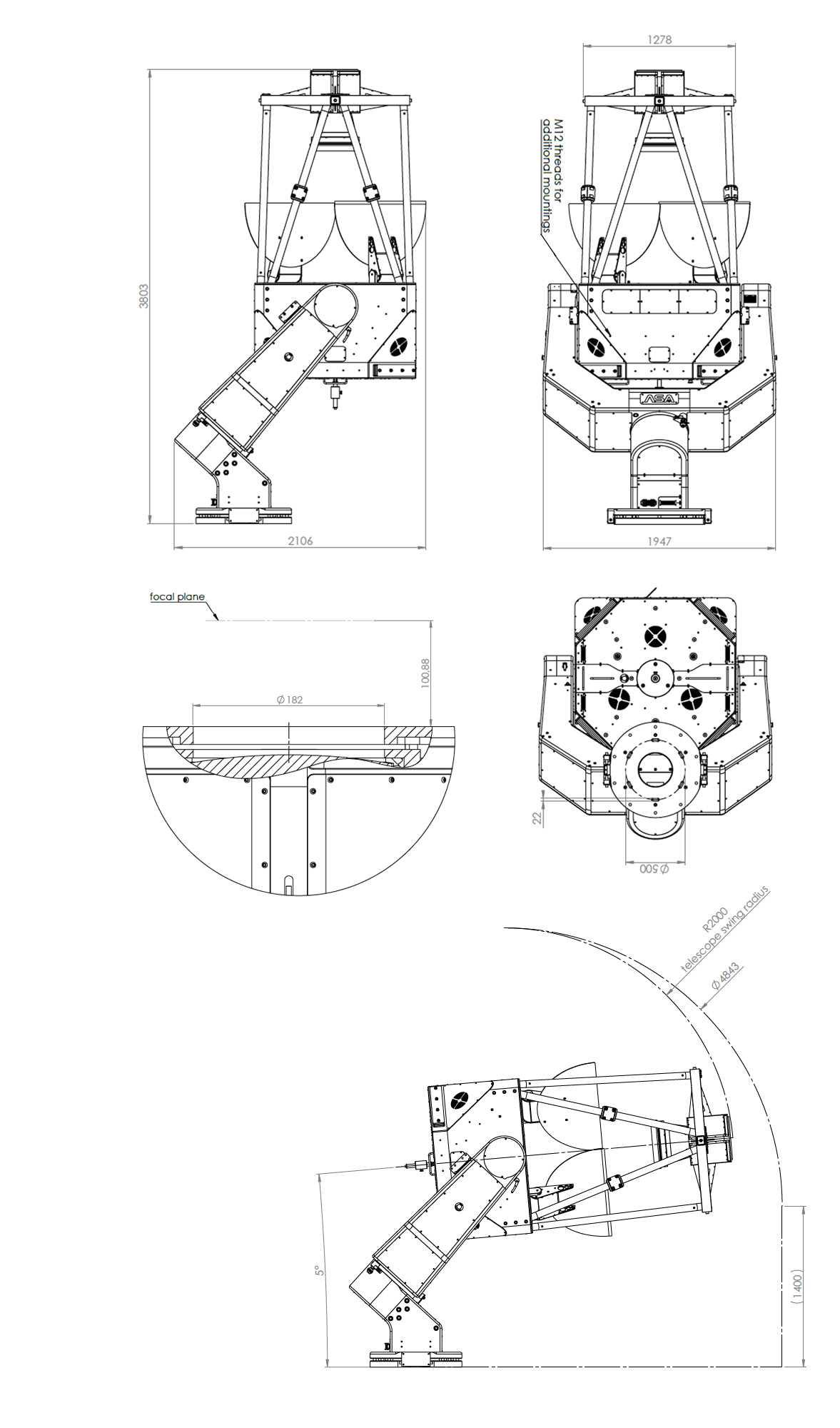

 ASA WF1000 f2.5 Wide Field telescope system

Technical Details

Electronic
Our closed loop direct drive systems, sensor technology and observatory safety modules play a major role in achieving optimum results. All moving accessory components are equipped with high-resolution encoders and closed-loop feedback systems. We provide event timer modules, and customer updatable firmware.
learnmore1

Optic

Only the best for your telescope!

We believe that the most important part in producing optics is the testing. So ASA decided that we invest in the best test equipment available, remove any measuring error as good as possible and use real values in our specifications.
learnmore1

Technologie
Our mounts are manufactured with the lastest CNC technology.
learnmore1

Software
Platform independent control software.
learnmore1



ASA/APM  Services

 Optional Tests for FAT/SAT  Installation package remote/on-site  Setup and Alignement remote/on-site
 Engineering Image Train Package  Alternative mirror coating Projektconsulting/-management by ASA/APM


ASA Accessories

  Remote package pro  Weather station sensor package  All Sky Cam 0201171A
